My Laser Scanners



To be updated soon......













Old Laser projects...

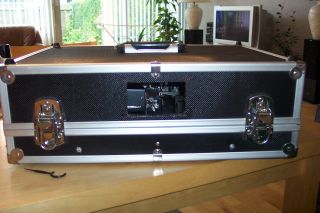

"The big one"

800mW
RGY (Green 500mW, Red(635nm) 300mW)
ScanPro30 galvos
ILDA 30Kpps.

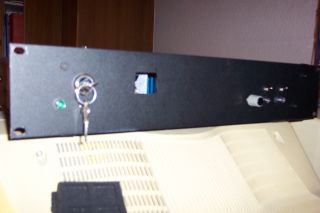

15K "China Box"

65-70mW
Single colour (Green)
ScanEco15 galvos
ILDA 15Kpps.

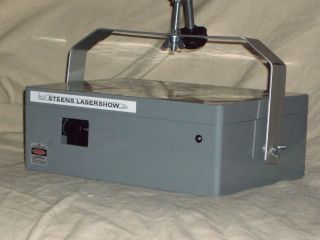

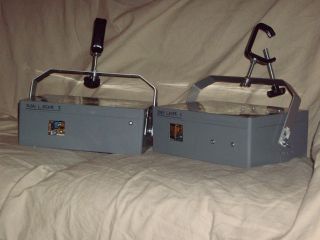

2 x 100% Homebuilt RGY

210mW
RGY (Green 50mW, Red 160mW)
Homebuilt galvos and galvo drivers
ILDA 8-10Kpps



My first "Closed Loop" galvo scanner

50mW
Single colour (Green)
Homebuilt galvos and galvo drivers
ILDA 1,8 - 2Kpps



My first stepper motor scanner

3mW
Single colour (Red)
Homebuilt D/A converter and stepper driver





Steen Meisner  2008
